RENTAL POOL

ECHO81 offers a wide range of sonar and positioning equipment to meet your hydrographic survey needs. All of our rental equipment is inspected and tested prior to delivery. Give us a call today to learn about our rental/lease inventory. In addition, we offer attractive lease purchase options for extended lease requirements.

  • MULTIBEAM ECHOSOUNDERS
  • SINGLE BEAM ECHOSOUNDERS
  • SIDE SCAN SONAR
  • SUB-BOTTOM PROFILERS
  • SOUND VELOCITY PROFILERS
  • POSITIONING SYSTEMS
  • INERTIAL NAVIGATION SYSTEMS

MultiBeam EchoSounders



R2Sonic 2020

  • Wideband Operation - Over 20x User Selectable Frequencies from 200 to 400kHz, selectable on the fly, in real-time during survey operations.
  • Optional 700kHz operation with 1° x 1° beamwidths.
  • Small & Lighweight - Less than 7" wide and weighing under 10 lbs. makes this unit ideal for small vessels of opportunity.

2020 w IMU and SV Probe.png

R2Sonic 2020 + I2NS

  • Wideband Operation - Over 20x User Selectable Frequencies from 200 to 400kHz, selectable on the fly, in real-time during survey operations.
  • Optional 700kHz operation with 1° x 1° beamwidths.
  • Small & Lighweight - Less than 7" wide and weighing under 10 lbs. makes this unit ideal for small vessels of opportunity.

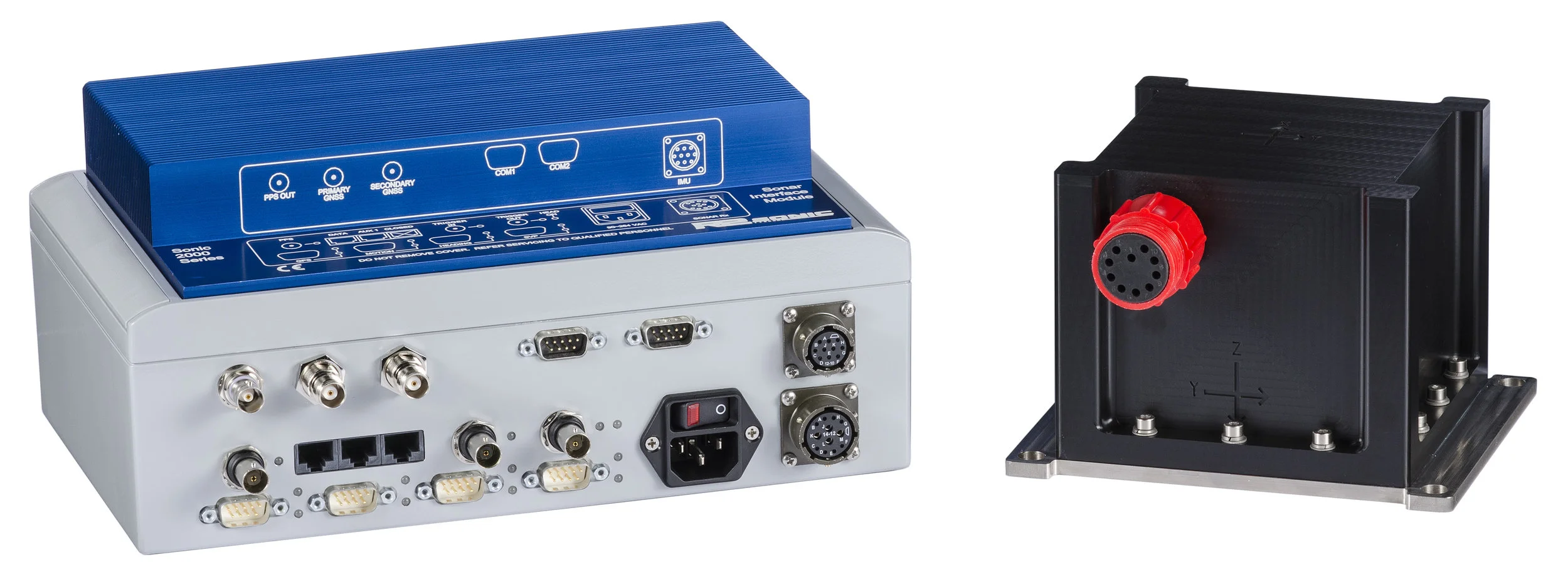

  • The I2NS SIM provides all of the necessary cables and interface ports to properly communicate and   configure inputs / outputs to the sonar available with the standard SIM. In addition, the unit comes with the I2NS Type II (Applanix WaveMaster) with submersible IMU to be mounted at the sonar if desired.
  • Roll / Pitch Accuracy: 0.02° with RTK
  • Heading Accuracy: 0.03° with 2m antenna baseline
  • Heave Accuracy 5cm or 5%, 2cm or 2% with TrueHeave
  • Supplied with: 1x IMU Assembly for R2 INS, 1x IMU cable 15m, 2x GNSS Antenna, 2x 8m GNSAntenna cable, POSView Software on CD, Quickstart manual, transport case.


R2Sonic 2024

  • Wideband Operation - Over 20x User Selectable Frequencies from 200 to 400kHz, selectable on the fly, in real-time during survey operations.
  • Optional 700kHz operation with 0.3° x 0.6° beamwidths.
  • Highest Resolution & Accuracy -Focused 0.5°x 1° beamwidths 60kHz Signal Bandwidth over entire frequency range. True Range Resolution of 1.25 cm, all frequencies.
  • Productive - Selectable swath coverage from 10° to 160°, selectable on the fly, in real-time during survey operations. 1 to 500m range.


R2SONIC 2024+ I2NS

  • Wideband Operation - Over 20x User Selectable Frequencies from 200 to 400kHz, selectable on the fly, in real-time during survey operations.
  • Highest Resolution & Accuracy -Focused 0.5°x 1° beamwidths 60kHz Signal Bandwidth over entire frequency range. True Range Resolution of 1.25 cm, all frequencies.
  • Productive - Selectable swath coverage from 10° to 160°, selectable on the fly, in real-time during survey operations. 1 to 500m range.
  • The I2NS SIM provides all of the necessary cables and interface ports to properly communicate and   configure inputs / outputs to the sonar available with the standard SIM. In addition, the unit comes with the I2NS Type II (Applanix WaveMaster) with submersible IMU to be mounted at the sonar if desired.
  • Roll / Pitch Accuracy: 0.02° with RTK
  • Heading Accuracy: 0.03° with 2m antenna baseline
  • Heave Accuracy 5cm or 5%, 2cm or 2% with TrueHeave
  • Supplied with: 1x IMU Assembly for R2 INS, 1x IMU cable 15m, 2x GNSS Antenna, 2x 8m GNSAntenna cable, POSView Software on CD, Quickstart manual, transport case.


EdgeTech 6205 MPES

  • Combined Bathymetry and Dual Frequency Side Scan Sonar
  • 550 kHz Bathymetry for shallow water and simultaneous 550 kHz + 1600 kHz Side Scan Sonar output
  •  Over 200° swath coverage
  • Unrivaled swath coverage in shallow water
  • Ideal for shallow water and benthic mapping applications

SIDE SCAN SONAR

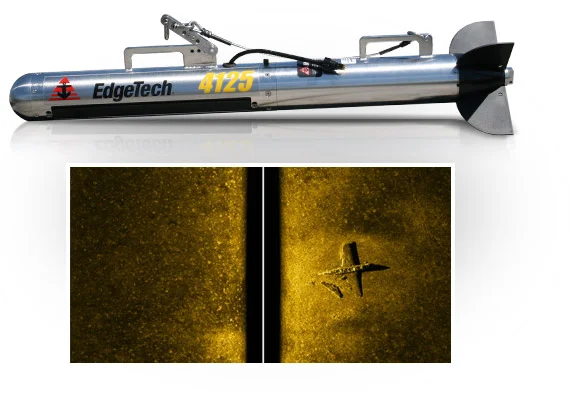

EdgeTech 4125

EdgeTech’s 4125 Side Scan Sonar System was designed with both the Search & Recovery (SAR) and shallow water survey communities in mind.  The 4125 utilizes EdgeTech’s Full Spectrum® CHIRP technology, which provides higher resolution imagery at ranges up to 50% greater than non-CHIRP systems operating at the same frequency.  This translates into more accurate results and faster surveys, thus cutting down on costs.

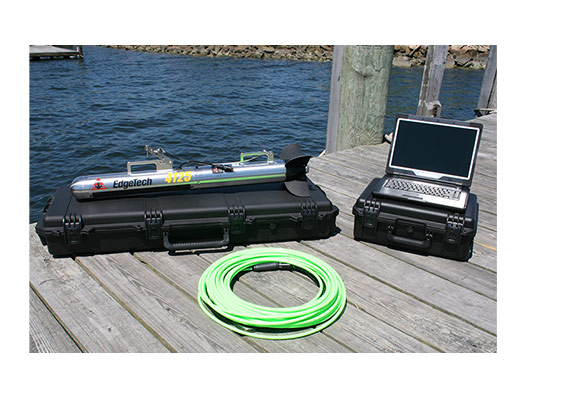

The 4125 system can be powered by both AC and DC for added versatility and is delivered in portable rugged cases for ease of transport from site-to-site. A standard 4125 System comes with a rugged stainless steel towfish and a portable water resistant topside processor including a splash-proof, drop and shock resistant laptop computer.  A 50 meter Kevlar tow cable is included.


Sub-bottom profilers


EdgeTech Sub-Bottom Profiler 3100

EdgeTech 3100

The 3100 is EdgeTech's portable version of their highly successful sub-bottom profiler product line. The system utilizes EdgeTech's Full Spectrum CHIRP technology which provides higher resolution imagery of the sub-bottom structure and produces greater penetration. The 3100 is ideally suited for use in rivers, lakes, ponds, and shallow water ocean applications up to 300m max depth. The system was designed for customers that require a portable solution that can be used from smaller boats, while not wanting to sacrifice image quality.


The 216S operates at 2-16 kHz and provides slightly less resolution but greater penetration. Along with a towfish, the 3100 system comes with a portable splash-proof topside processor with a laptop computer running EdgeTech’s DISCOVER software for display of the sonar data. The system comes standard with a 35m tow cable.


Sound velocity profilers


BaseX2 RGB web 8w.png

AML BASE•X2

Shallow Water Sound Velocity Profiling Instrument with integrated WiFi and GPS. Self recording or real time output. Internal rechargeable battery and integrated shackle. Ideal for SV and Pressure to a maximum 500m. Includes transit case and charger / communications cable.


Storm case for shipping and storing Base•X₂ is included
