Product Description

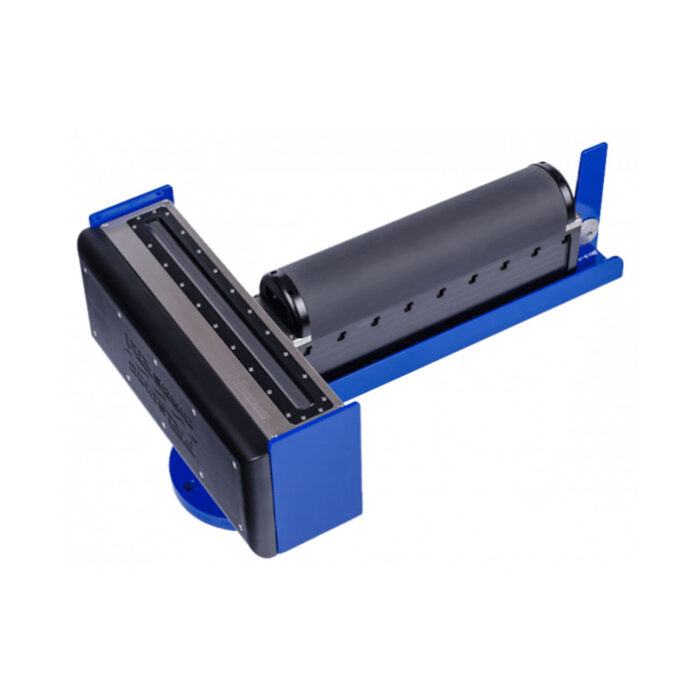

R2Sonic 2026 Multibeam Sonar (Rental)

The R2Sonic 2026 is a high-resolution, mid-depth multibeam echosounder designed for precision bathymetric mapping in a wide range of marine environments. With its broadband frequency range from 170 kHz to 450 kHz, the Sonic 2026 delivers exceptional data quality for applications including hydrographic surveys, habitat mapping, dredging support, and subsea inspections.

Engineered for flexibility, the Sonic 2026 allows users to select operating frequencies on the fly, optimizing performance for depth, resolution, or water conditions. Its user-defined swath sector coverage (up to 160°) enables maximum efficiency while maintaining high data density. Operators benefit from variable sound velocity, beamforming technology, and equidistant or equiangle beam spacing — essential features for accurate data in both shallow and mid-water environments.

The 2026 model supports pulse compression (CHIRP) and roll-stabilized beam steering, ensuring consistent coverage even in dynamic sea conditions. Optional add-ons include backscatter data collection, TruePix™ imagery, and water column data, making the system suitable for advanced seabed characterization and target detection.

Key Features:

• Frequency range: 170–450 kHz

• Swath coverage: Up to 160°

• Range: 0.5 m to 400 m

• Beamwidth: 0.6° × 0.6° at 450 kHz

• CHIRP-enabled for enhanced range and resolution

• Roll, pitch, and heave compensation

• Compact and lightweight design for vessel or AUV/ROV integration

• Real-time quality filters and flexible beam modes

• Seamless integration with INS and sound velocity sensors

The R2Sonic 2026 is trusted by surveyors and scientists worldwide for its reliable performance, adaptability, and cutting-edge acoustic technology.

For mor information, please contact us
